2026 Ram 2500 vs. 3500 Towing Guide

 By Anthony Toronto | May 5th, 2026 | 9 min read
Fast Facts | 2026 Ram 2500 vs. 3500 Towing Guide
🛻 Max Tow (Ram 2500):
Up to 17,750 lbs (6.4L HEMI) or 20,000 lbs (HO 6.7L Cummins)
🏋️ Max Tow (Ram 3500):
Up to 18,150 lbs (6.4L HEMI) or 36,610 lbs (HO 6.7L Cummins)
📦 Max Payload:
2500 up to 3,930 lbs (gas) / 3,600 lbs (diesel); 3500 up to 7,590 lbs (gas) / 6,050 lbs (diesel)
🧷 Hitch Rule:
Fifth-wheel/gooseneck required over 20,000 lbs (2500) and over 23,000 lbs (3500)
💪 Diesel Torque:
HO 6.7L Cummins rated at 1,075 lb-ft (430 hp)
🎥 Tow Tech:
Available trailer reverse steering assist, trailer TPMS, and 360-degree trailer surround view capability
Big towing numbers are easy to quote. The harder part is knowing whether a Ram 2500 already covers your trailer or whether a Ram 3500 gives you the margin your setup really needs.

That is the decision this guide is built to simplify. On paper, the 2026 Ram 2500 can tow up to 20,000 pounds with the available High-Output 6.7L Cummins turbo diesel and up to 17,750 pounds with the 6.4L HEMI V8. The 2026 Ram 3500 stretches much farther, topping out at 36,610 pounds with diesel power and 18,150 pounds with the gas V8 when properly equipped.

Those hero numbers matter, but they are not the whole story. Hitch type, payload, cab and bed configuration, axle ratio, passengers, bed cargo, and even how often you tow can change which truck is the smarter buy. For many RV owners, contractors, and equipment haulers, a properly configured Ram 2500 is already serious truck. Once trailer size, pin weight, or daily workload starts climbing, the Ram 3500 becomes the better answer.

2026 Ram 2500 vs 3500 Towing Capacity at a Glance

The easiest way to think about these trucks is this: the Ram 2500 covers a wide middle ground of serious towing, while the Ram 3500 is built for heavier, more specialized duty. The 2500 is strong enough for many large travel trailers, toy haulers, boats, and work trailers. The 3500 is the one you start looking at when the trailer is larger, the hitch load gets heavier, or the truck will spend more of its life towing near the top of the chart. The quick comparison below uses Ram's official 2026 towing and payload figures.
Properly equipped. Exact towing and payload ratings vary by engine, cab, bed, drivetrain, axle ratio, hitch type, passengers, cargo, and trailer setup.
Which Truck Fits Your Trailer?
A Ram 2500 is enough truck for more people than the internet likes to admit. If your world revolves around a big travel trailer, a boat, a contractor trailer, a toy hauler, or a moderate fifth-wheel, the 2500 can make a lot of sense because it still gives you heavy-duty muscle without moving all the way into the bigger 3500 footprint and capability envelope.

The Ram 3500 is the smarter move when the trailer itself starts dictating the purchase. That usually means larger fifth-wheels, gooseneck setups, livestock duty, heavier equipment hauling, or any situation where payload pressure is stacking up fast. It is not just about the headline tow number. It is about having more margin when pin weight, bed cargo, tools, passengers, and long-distance towing all hit the truck at once.
2500 vs 3500 Quick Chooser
  • Travel trailer, boat, mixed weekend towing: Ram 2500 is usually the sweet spot if you want heavy-duty muscle without max-duty footprint
  • Large fifth-wheel or gooseneck towing: Ram 3500 is the safer move when pin weight and payload start stacking up fast.
  • Frequent heavy equipment or livestock hauling: Ram 3500 if you tow near the top often and want more margin day after day.
If driver assistance and camera systems are part of your towing confidence plan, Driver Assist helps set expectations for what these systems can and cannot do

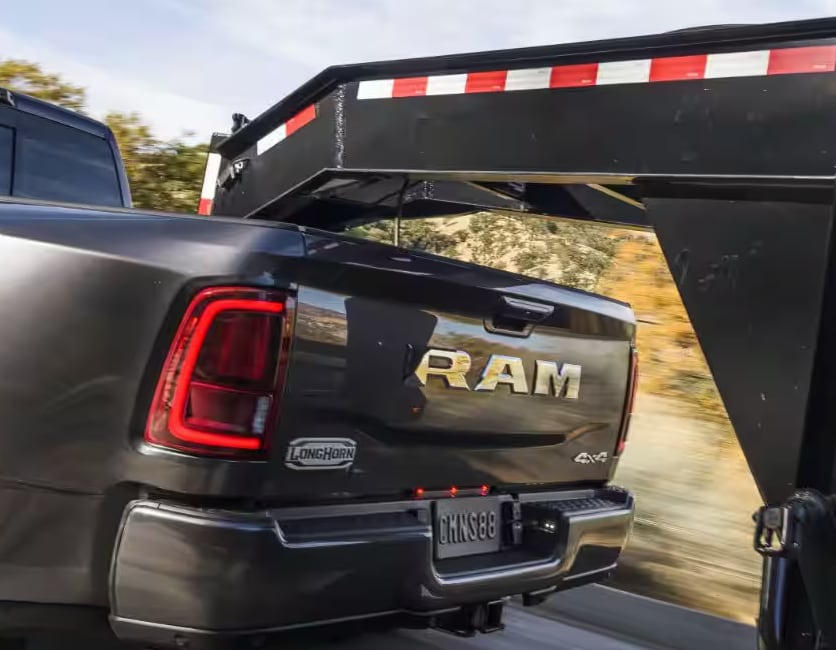

There is also a hitch-rule reality here that matters. Ram notes that a fifth-wheel or gooseneck hitch is required for trailers over 20,000 pounds on Ram 2500 models and over 23,000 pounds on Ram 3500 models. That means once your trailer gets truly heavy, this stops being a simple receiver-hitch conversation.

Two-Minute Towing Reality Check

  • Loaded trailer weight: Use the trailer's loaded weight (not dry). Add water, gear, passengers, and accessories before you decide which truck you need.
  • Hitch type: Receiver hitches work for many setups, but heavy trailers often push you into fifth-wheel/gooseneck territory where hitch rules and pin weight matter more.
  • Payload reality: Payload gets eaten fast by passengers, bed cargo, hitch hardware, and pin/hitch weight. If payload is tight, the "big tow number" won't save you.
What Changes Your Tow Rating More Than You Think
The max tow number on a brochure is only the starting point. Ram's 6.4L HEMI V8 makes 405 horsepower and 429 lb-ft of torque, while the available High-Output 6.7L Cummins turbo diesel raises the ceiling to 430 horsepower and 1,075 lb-ft through the TorqueFlite HD eight-speed automatic. Engine choice matters, but so do drivetrain, axle ratio, cab size, bed length, and hitch type. Ram's towing guidance is clear that 4x2 trucks generally carry higher towing and payload ratings than 4x4 versions, while larger cabs and longer, heavier setups can trim your available margin.

Payload is the number many shoppers underestimate. A conventional trailer usually puts about 10 percent of its loaded weight on the hitch. A fifth-wheel or gooseneck places much more of that load directly into the truck, which means payload can become the limiting factor before you ever reach the big headline tow rating. That is why a truck that looks fine on paper can still be the wrong match once people, gear, hitch hardware, and bed cargo are added.

The practical move is to work backward from your real trailer. Start with the trailer's loaded weight, then add hitch load, passengers, cargo, accessories, and the kind of terrain you tow through. That is how you figure out whether a Ram 2500 is enough or whether a Ram 3500 gives you the breathing room that makes towing calmer and more comfortable.
Tow Tech and Heavy-Duty Features Worth Caring About
This is one of the areas where the 2026 Ram HD trucks make their case well. Available Trailer Reverse Steering Control helps back a trailer with less drama by letting you guide direction with a knob while the truck handles steering input. Available Trailer Tire Pressure Monitoring can display live readings for up to four trailers in the available 12-inch Digital Cluster Display. Ram also offers Trailer Tow Pages and wide camera support, including available 360-degree Trailer Surround View Camera capability on heavy-duty models.

If you're new to towing or just want a clean refresher, How To Tow a Trailer covers the fundamentals that matter before you chase big numbers

The hardware side matters just as much. An available Fifth-Wheel/Gooseneck Prep Package adds factory-integrated mounting hardware, which is a much cleaner starting point for serious towing. Available Auto-Level Rear Air Suspension can help keep the truck better settled under load, and Ram's available automatic smart exhaust brake is useful for diesel buyers who tow in hills or mountains.

There are also a few underrated ownership details here. Ram offers an available 50-gallon fuel tank on certain 3500 Crew Cab 8-foot-bed models, which is a real benefit for long towing days. The heavy-duty lineup also offers available on-board power in the bed, standard Trailer Brake Control, and standard manual telescoping tow mirrors, all of which matter more once the truck is actually working.
How to Choose the Right Ram HD for RV, Jobsite, or Equipment Duty
If you tow a large travel trailer, boat, enclosed work trailer, or moderate toy hauler and still want your truck to feel like a realistic daily driver, the Ram 2500 is often the sweet spot. It brings strong towing, serious torque with the diesel, and enough heavy-duty hardware for a wide range of real-world jobs without jumping straight to the bigger 3500 mission set.

If your plan includes a large fifth-wheel, repeated heavy equipment hauling, horse or livestock duty, or a trailer that is going to live near the top end of what a truck can handle, the Ram 3500 is the safer long-view decision. The extra towing ceiling is one thing. The bigger payload headroom and stronger overall margin are what really make the difference.

The best buying advice is simple. Do not shop these trucks by ego or by one chart number. Shop by trailer type, loaded weight, hitch setup, payload reality, and how often you will actually tow. A correctly matched Ram 2500 feels confident. A correctly matched Ram 3500 feels unbothered. That difference is worth paying attention to.

Quick Answers That Matter Before You Tow

How much can the 2026 Ram 2500 tow?

When properly equipped, the 2026 Ram 2500 can tow up to 17,750 pounds with the 6.4L HEMI V8 and up to 20,000 pounds with the available High-Output 6.7L Cummins turbo diesel.
When properly equipped, the 2026 Ram 3500 can tow up to 18,150 pounds with the gas V8 and up to 36,610 pounds with the available High-Output 6.7L Cummins turbo diesel.
Not always. A properly configured Ram 2500 can handle some fifth-wheel setups, but the Ram 3500 becomes the smarter move as trailer size, pin weight, and payload demands rise. For very heavy trailers, the extra headroom matters.
Engine, drivetrain, cab and bed configuration, axle ratio, hitch type, payload, passengers, bed cargo, and trailer setup all affect the final tow rating. That is why the exact truck configuration matters as much as the badge on the fender.
